| Casing | ||
| Type | Mid-Tower | |
| Color(s) | Black | |
| Motherboard Support | Supports E-ATX (Up to 272mm Wide), ATX, Micro-ATX, Mini-ITX Motherboards | |
| Fan Support | 120/140mm | |
| Radiator Support | 1x max. 280/360 mm (front) 1x max. 120 mm (rear) |
|
| Cooling System | Fan Options Front: 3 x 120mm (2 x 120mm black fan included) or 2 x 140mm fan Top: 2 x 120mm or 2 x 140mm fan Rear: 1 x 120mm fan |
|
| Side Panel | Tempered Glass Side Panel | |
| Expansion Slots | 7 x Expansion Slots | |
| Front Ports | 2x 140 / 3x 120 mm (front) Radiator Mountings (forfeits HDD- and/or fan slots): 1x max. 280/360 mm (front) |
|
| I/O Port | 1x Power button 1x Fan controller 2x USB 3.0 2x Audio |
|
| Drive Bays | 2x 2,5" (behind motherboard tray) 2x 2,5/3,5" (internal; tool-free installation) |
|
| Dimensions | 210 x 465 x 470 mm (W x H x D) | |
| Weight | approx. 7 kg | |
| Others | Maximum CPU Cooler Height 160 mm Maximum Graphics Card Length 420 mm 280 mm (When HDD brackets installed) |
|
| Warranty | ||

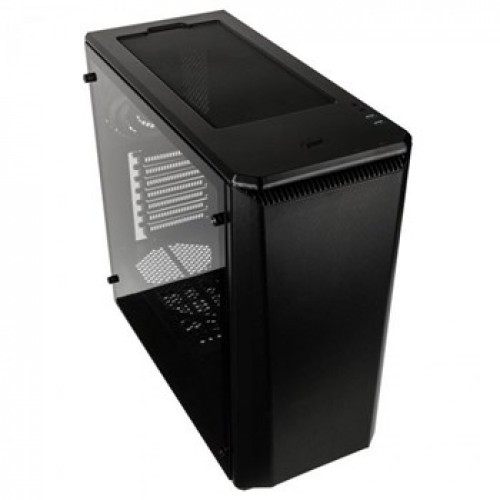

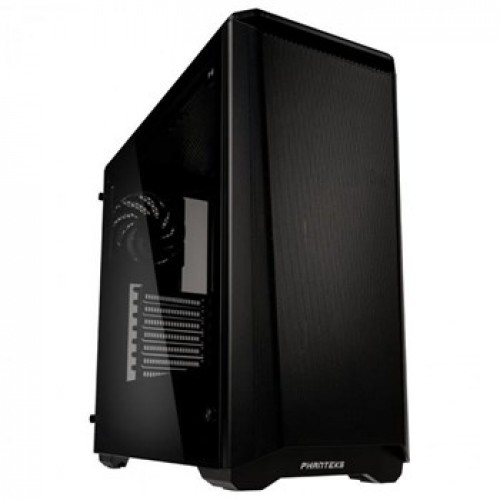

Phanteks Eclipse P400 Air Mid Tower Casing designed for beginners, It's features including, despite its sleek profile, optimised airflow. The front of the Eclipse P400 Air consists of a metal plate with a fine mesh grid which allows excellent airflow on one hand, while also allowing users to keep the interior of the case free of dust. When compared to the usual combination of mesh and dust filters, the advantage here lies in the fact that the fans situated behind the front panel are able to pull in air more easily. This durable mesh also happens to add a certain something to the overall look of the case - especially when the interior of the case is illuminated with RGB lighting.
The highlight of the case can be said to be its use of a tinted, tempered glass side window that affords users an impressively unobstructed view of their gaming hardware - while also helping the case as a whole to cut a rather premium figure in comparison to the competition. Additionally, the case offers two pre-installed 120 mm fans that are connected to an integrated controller, the speeds of which can be controlled in three stages via a switch on the I/O panel. This case is built in Steel, plastic, tempered glass materials. It supports E-ATX (up to 272 mm wide), ATX, Micro-ATX, Mini-ITX motherboard. This new Phanteks Eclipse P400 Air Mid Tower Casing has 2x 140 / 3x 120 mm (front), 2x 140 / 120 mm (roof), 1x 120 mm (rear), 2x 120 mm (front Pre-installed) and 1x max. 280/360 mm (front), 1x max. 120 mm (rear) Radiator Mountings. This casing has Front, PSU, roof (removable) Filter. Here, 2x 2,5" (behind motherboard tray) and 2x 2,5/3,5" (internal; tool-free installation) Drive Bays are also available. In this case, 1x Power button, 1x Fan controller, 2x USB 3.0 and 2x Audio I/O Panel are available and also supports Max GPU length: 420 mm, Max CPU cooler height: 160 mm and Max PSU length: 270 mm.
The Phanteks Eclipse P400 Air Mid Tower Casing has got hardcore gamers covered when it comes to hardware: graphics cards up to 420 mm in length are supported with radiator mounts for AiO and custom water cooling solutions. Users wish to install a 360 mm radiator however, a panel in the PSU shroud, as well as the HDD cage, must be removed. In addition to the two pre-installed 120 mm fans on the front, up to two 120- or 140 mm fans can be mounted in the roof along. The casing has no warranty.
