| Motherboard | ||
| Form Factor | mATX 243.84mmx243.84mm |
|
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Memory Type | DDR5 | |
| Memory Slots | 2 | |
| Supported Memory | 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Maximum Memory | 96GB | |
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| HDMI | 1x HDMI | |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN | |
| Supported Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| Audio | Audio Connectors | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Manufacturing Warranty | 3 Years | |

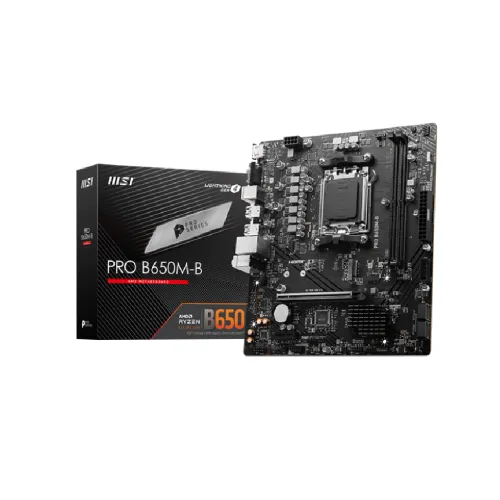

The MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard meets the needs of modern computing with cutting-edge technology and adaptability. With its unique design to support the most recent Ryzen 7000 and 8000 Series Processors for Socket AM5, this motherboard guarantees peak performance, which makes it a great option for people doing a variety of computer jobs, such as professional content production or gaming. The motherboard claims compatibility for up to 2x DDR5 RAM modules, allowing users to harness memory speeds of 6800+ MHz (when overclocked). This feature meets the demands of resource-intensive programs, multitasking, and high-performance computing by offering a significant increase in memory bandwidth. With 1x HDMI and 1x Display Port, the MSI PRO B650M-B provides flexible visual connectivity that makes it easy to set up multiple displays and produces high-quality graphics output. For users who need immersive graphics or increased productivity with numerous displays, this function is very helpful. The addition of a 2.5G LAN to the motherboard significantly enhances its networking capabilities and guarantees dependable and quick data transfer. This offers a smooth and responsive online experience, making it especially useful for network-intensive activities like online gaming and multimedia streaming. The MSI PRO B650M-B DDR5 AMD AM5 mATX Motherboard provides a solid base for your system, regardless of your needs as an avid gamer, creative professional, or multitasker. This motherboard meets the needs of the ever-changing computing landscape of today by delivering an improved computing experience with its combination of performance, networking choices, and innovative features.
