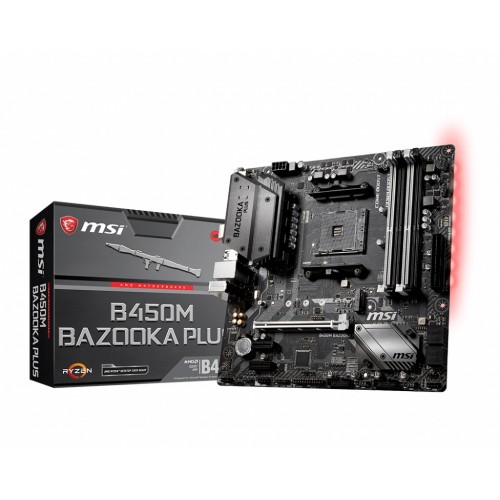

MSI B450M BAZOOKA PLUS AM4 AMD ATX Motherboard

MSI B450M BAZOOKA PLUS AM4 AMD ATX Motherboard

Model: MSI B450M BAZOOKA PLUS
Product Code: 11598
Availability: Up Coming

Quick Overview

Model: MSI B450M BAZOOKA PLUS
Supports 1st, 2nd and 3rd Gen AMD Ryzen
Lightning Fast Game experience
Extended Heatsink Design
DDR4 Boost & Audio Boost

View More Info

Review:

0 Customer Review

Up Coming

Quantity:

Specification
Description
Reviews (0)

Specification:

Motherboard
BIOS	Flash BIOS Button
Form Factor	M-ATX
PCI	1x PCIe 3.0 x16 slot -Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors -Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors -Supports x4 speed with AMD Athlon with Radeon Vega Graphics processors 2x PCIe 2.0 x1 slots
Memory Type	DDR4
Memory Slots	4
Supported Memory	Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3333 MHz (by A-XMP OC MODE) Supports Dual-Channel mode Supports non-ECC UDIMM memory Supports ECC UDIMM memory
Maximum Memory	64GB
Graphics	1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz1,2 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2 Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics processors
HDMI	Yes (1.4 )
USB (s)	AMD B450 Chipset : 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 Gen1 connectors) 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
LAN Port (s)	1 x Realtek RTL8111H Gigabit LAN controller
Supported Storage	AMD B450 Chipset : 4 x SATA 6Gb/s ports AMD CPU : 1 x M.2 slot (M2_1, Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
Audio	7.1-Channel High Definition Audio
Internal I/O Ports	1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector
TPM (Trusted Platform Module )	1 x TPM module connector
Manufacturing Warranty	03 Years Warranty

Description :

MSI B450M BAZOOKA PLUS AM4 AMD ATX Motherboard

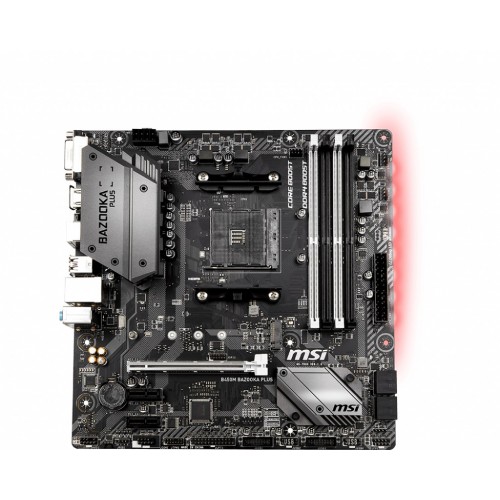

The B450M Bazooka Plus is a pair of microATX motherboards from MSI’s entry-level Arsenal Gaming range. Its PCIe configuration and layout with a single full-length PCIe 3.0 x16 slot and two PCIe 2.0 x1 slots. This board have onboard audio and network controllers with the Realtek ALC892 8-channel audio codec and Realtek 8111H Gigabit LAN controller both being featured. The visuals are dominated by a black PCB with an industrial looking grey pattern printed on. The B450M Bazooka Plus has a bigger power delivery heatsink and has a light metallic grey look. It’s also having a have a 6-phase power delivery operating in a 4+2 configuration. The B450M Bazooka Plus looks to be the more premium of the two microATX offerings, it has support for DDR4 and have a total of four memory slots meaning up to a maximum of 64 GB of system memory can be installed. The options for storage is identical with B450M Bazooka Plus boards having four SATA 6 Gbps ports and a single PCIe 3.0 x4/SATA M.2 slot which allows drives up to a size of M.2 22110 (22 x 110 mm) and also having four right-angled connectors. Another unique feature of the B450M Bazooka Plus adds another USB 3.1 5 Gbps header giving the capability to add up to four ports. . For users looking to add extra RGB LED lighting B450M Bazooka Plus has two 5050 RGB header. On the rear panel, have four USB 3.1 5 Gbps ports, two USB 2.0 ports, an HDMI 1.4 output, a DVI-D output, three 3.5mm audio jacks due to the Realtek ALC892 audio codec, a single LAN port controlled by the Realtek 8111H Gigabit networking chip and a PS/2 combo port. The B450M Bazooka Plus has the added benefits of a BIOS Flashback+ button.
