| Motherboard | ||
| BIOS | 1 X 128 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor;24.4cm X 24.4cm |
|
| PCI | 1 X PCI Express X16 Slot, Integrated In The CPU: AMD Ryzen™ 5000 Series*/3000 Series Processors Support PCIe 4.0 X16 Mode * Actual Support May Vary By AMD CPU's Specification. AMD Ryzen™ 5000 G-Series/4000 G-Series Processors Support PCIe 3.0 X16 Mode 1 X PCI Express X1 Slot, Integrated In The Chipset: Supporting PCIe 3.0 X1 Mode |
|
| Memory Type | Dual Channel DDR4 Memory Technology | |
| Memory Slots | 4 x DIMM | |
| Supported Memory | 4 X DDR4 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Support For DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Memory Modules Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules* * ECC Memory (ECC Mode) Support Varies By CPU Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
|
| Maximum Memory | 128 GB | |
| Graphics | 1 X DisplayPort, Supporting A Maximum Resolution Of 5120x2880@60 Hz * Support For DisplayPort 1.4 Version, HDCP 2.3, And HDR. 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.1 Version, HDCP 2.3, And HDR. Maximum Shared Memory Of 16 GB |
|
| HDMI | 1 x HDMI | |
| USB (s) | CPU: 4 X USB 3.2 Gen 1 Ports On The Back Panel Chipset: 2 X USB 3.2 Gen 1 Ports Available Through The Internal USB Header 6 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) |
|
| LAN Port (s) | Realtek® GbE LAN Chip (1 Gbps/100 Mbps) | |
| Supported Storage | 1 X M.2 Connector (M2A_CPU), Integrated In The CPU, Supporting Socket 3, M Key, Type 2280 SSDs: AMD Ryzen™ 5000 Series/3000 Series Processors Support SATA And PCIe 4.0 X4/X2 SSDs AMD Ryzen™ 5000 G-Series/4000 G-Series Processors Support SATA And PCIe 3.0 X4/X2 SSDs 1 X M.2 Connector (M2B_SB), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2280 SSDs: Supporting PCIe 3.0 X2 SSDs 4 X SATA 6Gb/S Connectors, Integrated In The Chipset: Support For RAID 0, RAID 1, And RAID 10 |
|
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel |
|
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X System Fan Header 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB 3.2 Gen 1 Header 1 X USB 2.0/1.1 Header 1 X Trusted Platform Module (TPM) Header (2x6 Pin, For The GC-TPM2.0_S Module Only) 1 X Clear CMOS Jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Manufacturing Warranty | 03 years | |

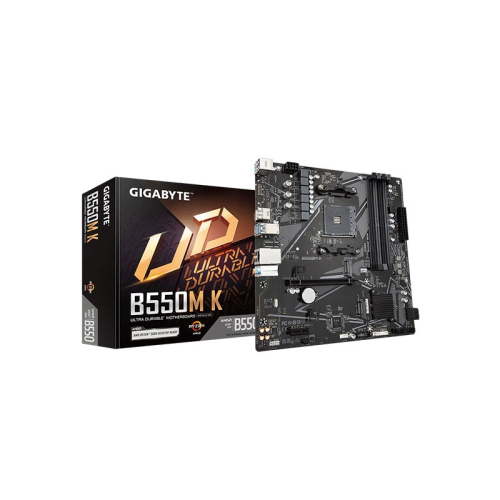

GIGABYTE B550M K AMD AM4 ULTRA DURABLE MICRO ATX MOTHERBOARD
Introducing the GIGABYTE B550M K AMD AM4 ULTRA DURABLE MICRO ATX MOTHERBOARD, a powerful foundation for your AMD Ryzen-powered system. This motherboard offers robust compatibility, supporting a range of AMD Ryzen processors, including the Ryzen 5000 Series, Ryzen 4000 G-Series, and Ryzen 3000 Series. With four DDR4 DIMM sockets, it can handle up to 128 GB of system memory at speeds up to DDR4 4733(O.C.). The integrated graphics processor supports DisplayPort and HDMI outputs with impressive resolutions and HDR support. For audio, it features a Realtek Audio CODEC with High Definition Audio and support for various audio setups. Networking is handled by a Realtek GbE LAN chip, delivering reliable connectivity. Expansion options include a PCI Express x16 slot supporting PCIe 4.0 for Ryzen 5000 Series/3000 Series processors or PCIe 3.0 for Ryzen 5000 G-Series/4000 G-Series processors, as well as a PCI Express x1 slot. Storage is versatile with M.2 connectors and SATA 6Gb/s connectors that support RAID 0, RAID 1, and RAID 10. USB ports, including USB 3.2 Gen 1 and USB 2.0/1.1, provide ample connectivity. The motherboard includes various internal connectors and headers, as well as a Trusted Platform Module (TPM) header. The back panel features a range of connectors, including PS/2, DisplayPort, HDMI, USB, RJ-45, and audio jacks. The motherboard is equipped with an iTE I/O Controller Chip for hardware monitoring, and the BIOS is user-friendly with licensed AMI UEFI BIOS. It comes with bundled software, including Norton Internet Security, LAN bandwidth management software, and supports Windows 11 64-bit and Windows 10 64-bit. This Micro ATX motherboard (24.4cm x 24.4cm) is backed by a 3-year warranty and is designed to be the reliable backbone of your AMD-based system. Bangladesh's top retailer of computer hardware and applications is Perennial. A hallmark of Perennial is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Gigabyte Motherboard available at Perennial is well recognized. The large selection of Motherboard available at Perennial is well recognized.
