| Motherboard | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
| Memory Type | DDR4 DIMM | |
| Maximum Memory | Supporting up to 128 GB | |
| Graphics | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) The maximum shared memory of 16 GB (Note) Actual support may vary by CPU. |
|
| USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
|
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
|
| Manufacturing Warranty | 03 years | |

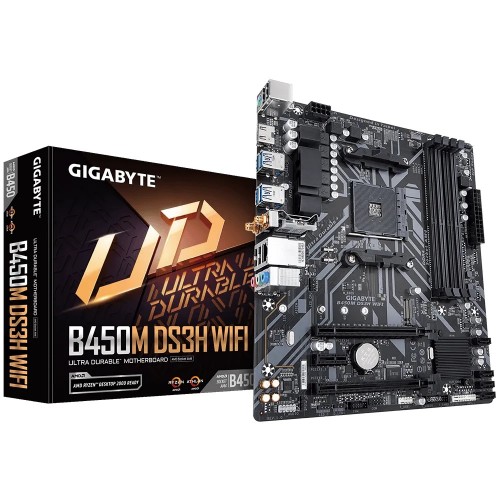

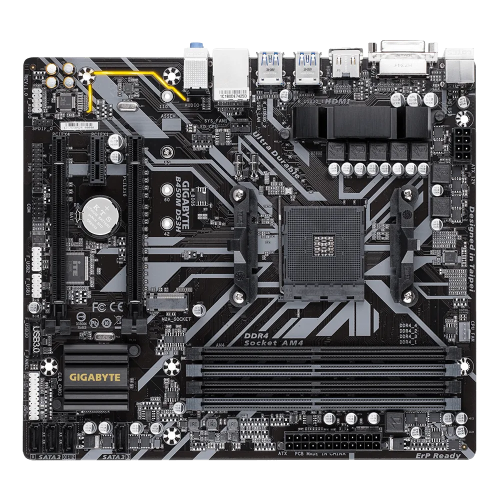

The GIGABYTE B450M DS3H AMD DDR4 ATX Motherboard is designed to deliver reliable performance and versatility for your AMD-based system. With support for AMD Ryzen processors and DDR4 memory, this motherboard offers a range of features that ensure smooth performance and efficient connectivity for your computing needs.
The B450M DS3H motherboard supports AMD Ryzen processors, providing excellent performance for gaming, content creation, and everyday computing tasks. Experience fast and responsive performance for demanding applications.
With support for DDR4 memory, the motherboard enables faster data transfer and improved multitasking capabilities. Experience enhanced system responsiveness and smoother overall performance.
The ATX form factor ensures compatibility with a wide range of PC cases, providing flexibility when it comes to building or upgrading your system. The spacious layout of an ATX motherboard allows for easier installation of components and better airflow, contributing to overall system stability.
The motherboard features multiple expansion slots, including PCIe x16 and PCIe x1 slots, allowing you to add additional components such as graphics cards, sound cards, and networking cards. It also provides various connectivity options, including USB ports, HDMI, DVI, and audio jacks, enabling seamless connection of peripherals and devices.
The motherboard incorporates high-quality audio components, delivering immersive sound for an enhanced audio experience. Whether you're gaming, watching movies, or listening to music, the onboard audio ensures accurate and vibrant audio reproduction.
GIGABYTE is known for its reliable motherboards, and the B450M DS3H is no exception. Built with high-quality components and advanced power delivery systems, this motherboard offers stability and durability, ensuring reliable performance even during intensive usage.
The motherboard features a user-friendly BIOS interface, allowing you to easily configure and optimize various settings for your system. With intuitive controls and options, you can fine-tune your system for optimal performance and compatibility.
The latest price of GIGABYTE B450M DS3H AMD DDR4 ATX Motherboard in Bangladesh is 9500৳. You can buy the GIGABYTE B450M DS3H AMD DDR4 ATX Motherboard at the best price from our website or visit our showrooms.
The GIGABYTE B450M DS3H AMD DDR4 ATX Motherboard offers reliable performance, expandability, and efficient connectivity options for your AMD system. With support for AMD Ryzen processors, DDR4 memory, and a range of expansion and connectivity features, this motherboard provides a solid foundation for your computing needs. Trust in GIGABYTE's reputation for quality and reliability, and upgrade your AMD system with the B450M DS3H motherboard for a seamless and enjoyable computing experience.
