| Casing | ||
| Type | Mid Tower | |
| Color(s) | Black | |
| Motherboard Support | Mini ITX, Micro ATX, ATX E-ATX: support for up to 12" x 10.7" |
|
| Fan Support | FAN SUPPORT - TOP: 3x 120mm, 2x 140mm FAN SUPPORT - FRONT: 3x 120mm, 2x 140mm FAN SUPPORT - REAR: 1x 120mm |
|
| Radiator Support | RADIATOR SUPPORT - TOP: 120mm, 240mm, 360mm, (44mm max motherboard component height) RADIATOR SUPPORT - FRONT: 120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance) RADIATOR SUPPORT - REAR: 120mm |
|
| Cooling System | ||
| Side Panel | ||
| Expansion Slots | 7 | |
| Front Ports | ||
| I/O Port | 2x USB 3.2 Gen 1 (formerly USB 3.0) 1x 3.5mm Audio Jack 1x 3.5mm Mic Jack 1x ARGB Controller 1x ARGB 2-to-3 splitter |
|
| Drive Bays | 2.5" / 3.5" DRIVE BAYS (COMBO): 2 2.5" DRIVE BAYS: 5 |
|
| Dimensions | 496 x 217 x 469 mm | |
| Weight | 6.59 kg | |
| Others | ||
| Warranty | ||

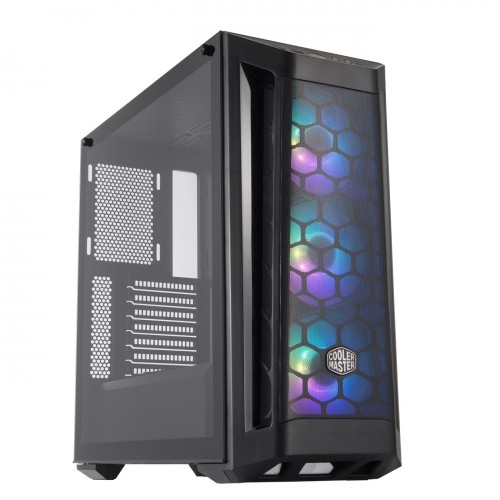

By employing Cooler Master’s Fine Mesh technology, the MasterBox MB511 ARGB demonstrates a prowess for thermal performance and pairs it with premium lighting. Three ARGB fans are included in the box to complement hardware lighting while mesh ventilation on the front and top panel keeps gaming systems cool under pressure. With airflow potential and aesthetic customization maximized, high-demand gaming rigs can breathe easy in the MasterBox MB511 ARGB.
The Fine Mesh design on the front panel is proven, by reviewers and critics alike, to provide considerable airflow while simultaneously filtering out dust. Light also refracts and behaves uniquely to the Fine Mesh, creating a halo effect against the included ARGB fans. Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system. Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel. Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensures that even the most extreme systems stay cool.
The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard. The controller comes with 14 lightings presets to make full use of the Addressable LEDs in the system and also allows it to be completely switched off by long-pressing its button. It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
