  • Model: Hyper 103
  • Product Code: 13164
  • Availability: Up Coming

Quick Overview

  • MPN: RR-H103-22PB-R1
  • Model: Hyper 103
  • Fan Air Pressure: 0.35 - 2.63 mmH2O
  • Fan Air Flow: 15.7 - 43.1 CFM
  • Fan Noise Level: 17 - 30 dBA
  • Fan Speed: 800-2200 RPM
  • View More Info
Review:
0 Customer Review
Up Coming
Quantity:

Specification:

CPU Cooler
Type Air Cooler
Fan Speed 800-2200 RPM (PWM) ± 10%
Fan Airflow 15.7 - 43.1 CFM ± 10%
Noise 17 - 30 dBA
Air Pressure 0.35 - 2.63 mmH2O ± 10%
Connector 4-Pin (PWM)
LED Number
Dimension DIMENSIONS: 108 x 89.5 x 138.5 mm
HEAT SINK DIMENSIONS: 96 x 61 x 138.5 mm
FAN DIMENSIONS: 92 x 92 x 25 mm
Intel LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, LGA775
AMD AM3, AM3+, AM2, FM2+, FM2, FM1
Warranty 01 Year

Description :

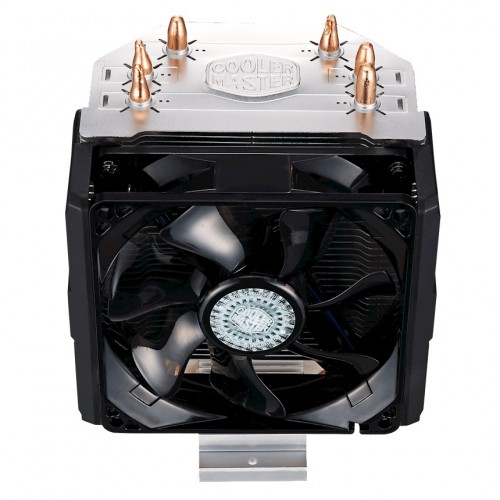

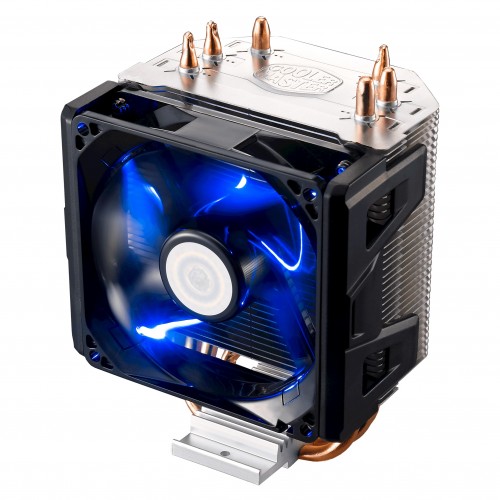

Cooler Master Hyper 103 CPU Air Cooler

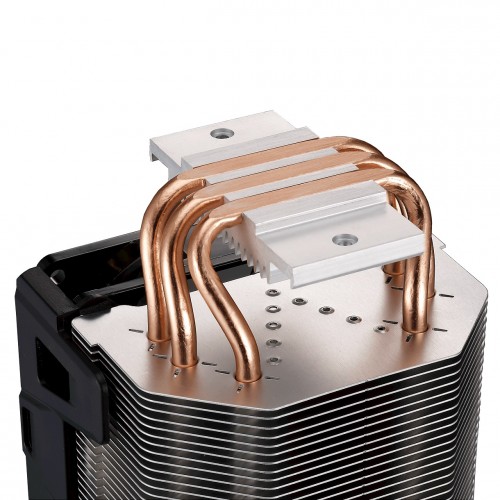

The Cooler Master Hyper 103 is an affordable mainstream heatsink, delivering great cooling performance on all modern platforms. The special fin design combined with Cooler Master’s exclusive X-Vent and Air-Guide technology optimizes air flow toward the heatpipes. The Hyper 103's 92mm PWM fan features a wide range for the fan speed and can be fine-tuned for maximum airflow or silent operation. The low profile tower heatsink is a great match for smaller systems. Funnel shaped aluminum fins and a series of perforated dimples help to guide the airflow towards the heatpipes, greatly reducing CPU temperature. Positioned in a 45 degree angle and surrounding the heatpipe, each fin-blade features X-shaped vents that create areas of high and low air pressure, resulting in several controlled vortices. These small and chaotic turbulences produce strong gusts that reduce overall airflow but improves airflow where it matters the most – next to the heatpipes. The base is engineered to minimize CPU contact gaps and stylish aluminum fins provide excellent heat dissipation. The Hyper 103’s 92mm PWM fan features a wide speed range and can be fine-tuned for maximum cooling performance or silent operation. The low profile tower heatsink is the perfect match for small systems. New tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU. The friendly design makes the fan installation easier.
