| Motherboard | ||
| BIOS | 128M UEFI, supporting multiple languages | |
| Form Factor | M-ATX 245mm x 245mm |
|
| PCI | 1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot |
|
| Memory Type | DDR4 | |
| Memory Slots | 4 | |
| Supported Memory | - DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
|
| Maximum Memory | 128 GB of memory (a single socket can support up to 32 GB of memory) | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| HDMI | 1x HDMI | |
| LAN Port (s) | RTL8125 2.5Gbit network card | |
| Supported Storage | A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| Internal I/O Ports | Rear I/O interface: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C interface - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×2.5G network interface - 2×Wi-Fi 6 antenna interfaces - 3×audio interfaces (audio input/audio output/microphone) - 1×BIOS update button On board device interface: - 1×CPU fan pin - 3×system fan pins - 1×water-cooled pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2×5V 3-pin ARGB pins - 2×12V 4-pin RGB pins - 1×Front audio pin - 1×front panel pin - 1×speaker pin - 1×clear CMOS jumper - 1×COM port pin - 1×BIOS burner pin - 1×POST card pin - 1×ME write protection jumper - 1×RGB light effect control jumper |
|
| Manufacturing Warranty | 3 years | |

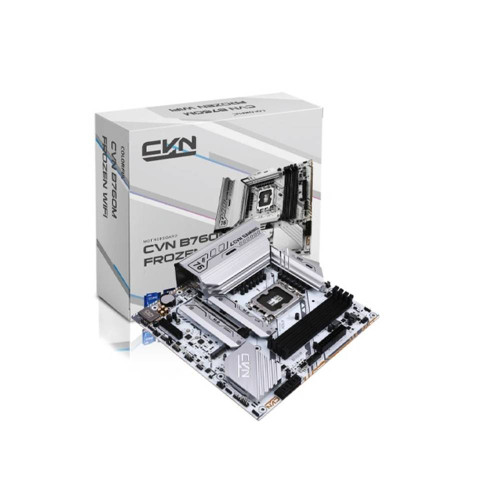

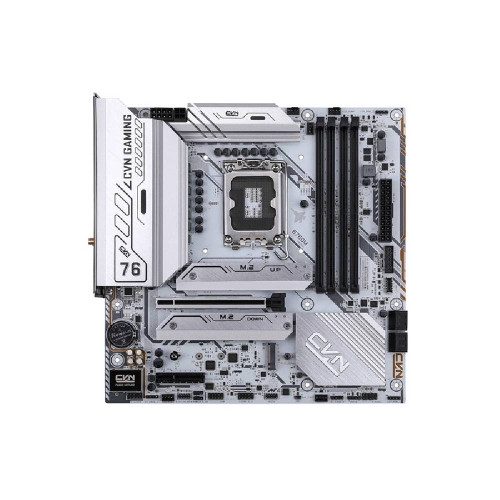

Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard designed for the LGA 1700 slot, this motherboard supports 14th, 13th, and 12th generation Intel Core™, Pentium, and Cylon processors. Packed with features and built to a compact mATX form factor (245mm x 245mm), it offers a perfect blend of performance and versatility.
Compatible with 14th/13th/12th gen Intel CPUs for exceptional performance.
Powered by the Intel B760 chipset for optimized functionality.
Four DDR4 slots support up to 128GB of memory with overclocking options.
Integrated Intel HD Graphics with HDMI and DisplayPort outputs for immersive visuals.
3 M.2 slots and 4 SATA 6Gb/s interfaces, supporting RAID 0, 1, 5, and 10 configurations.
Features RTL8125 2.5G LAN and AX201/AX200 WiFi 6 with Bluetooth 5.2 for fast and reliable connectivity.
Diverse rear I/O with USB 2.0/3.2 Gen 1 Type-A/C, DP 1.2, HDMI 2.0, 2.5G LAN, Wi-Fi 6, and audio interfaces. On-board interfaces include CPU/system fan pins, water-cooled pump pin, USB, audio, ARGB, and RGB headers.
Compact mATX form factor for flexibility in system builds.
The latest price of the Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard in Bangladesh is 22,500৳. You can buy the Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard at the best price from our website or visit any of our showrooms.
The Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard is a feature-rich solution that brings together performance and compact design. Whether you're a gamer or a content creator, this motherboard offers the connectivity and power you need. Backed by a 3-year manufacturing warranty, it's a reliable choice for a wide range of computing enthusiasts.
Q: What CPUs are supported by the Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard?
A: It supports the 14th/13th/12th generation Intel Core™, Pentium, and Cylon processors.
Q: What is the maximum memory supported, and what types of memory are compatible?
A: The motherboard supports up to 128GB of DDR4 memory (32GB per slot) with speeds ranging from 2133MHz to 4800MHz (OC).
