| Motherboard | ||
| BIOS | 128M UEFI, supporting multiple languages | |
| Form Factor | M-ATX 245mm x 245mm |
|
| PCI | 1xPCIe 4.0 x16 slot 1xPCIe 3.0 x1 slot |
|
| Memory Type | DDR4 | |
| Memory Slots | 2 | |
| Supported Memory | - DDR4-3200/2933/2666/2400MHz memory - support dual-channel memory technology |
|
| Maximum Memory | support up to 64 GB of memory (a single slot can support up to 32 GB of memory) | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×VGA interface |
|
| HDMI | 1x HDMI | |
| USB (s) | ||
| LAN Port (s) | RTL8111H Gigabit network card |
|
| Supported Storage | A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported - M2_ 1 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel) |
|
| Audio | ||
| Internal I/O Ports | Rear I/O: - 1×PS/2 interface - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×VGA interface - 1×Gigabit network interface - 3×Audio interfaces (audio input/audio output/microphone) On board: - 1×CPU fan pin - 2×System fan pins - 1×water cooling pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×Front audio pin - 1×Front panel pin - 1×Speaker pin - 1×COM port pin - 1×ME write protection jumper - 1×Clear CMOS jumper - 1×BIOS burner pin - 1×POST Card pin - 1×Wake-up control jumper |
|
| TPM (Trusted Platform Module ) | ||
| Manufacturing Warranty | 3 years | |

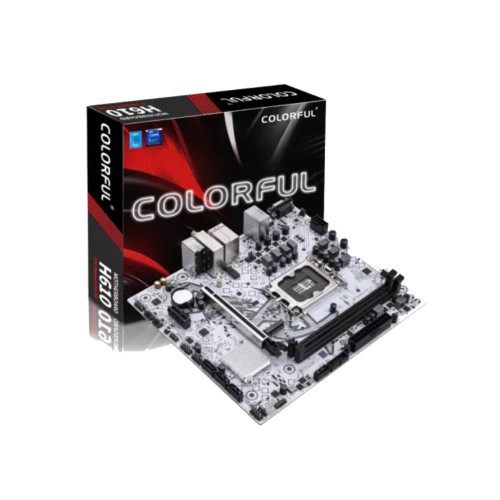

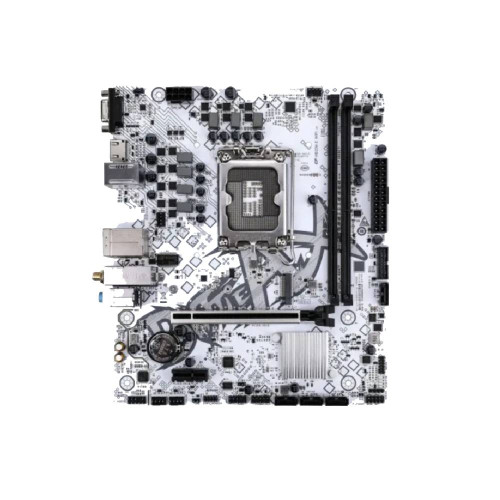

The Colorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard is engineered to meet the demands of modern computing. With support for 14th/13th/12th Gen Intel CPUs and featuring the Intel H610 chipset, this motherboard offers a versatile solution for a wide range of applications. Its compact M-ATX form factor makes it suitable for space-efficient builds.
Compatible with 14th/13th/12th Gen Intel Core, Pentium, and Cylon processors for reliable performance.
Powered by the Intel H610 chipset, providing a stable and efficient platform.
Dual DDR4 slots support up to 64GB of memory at speeds of DDR4-3200/2933/2666/2400MHz.
Integrated Intel HD Graphics with HDMI 2.0 and VGA interfaces, supporting up to 4K 60Hz resolution.
PCIe 4.0 x16 slot for graphics cards and PCIe 3.0 x1 slot for additional expansion.
Features RTL8111H Gigabit LAN and RTL8821CE/AC3165 WiFi 5 with Bluetooth 4.2 for versatile connectivity options.
1 M.2 slot and 4 SATA 6Gb/s interfaces for storage flexibility.
Rear I/O with PS/2, USB 2.0/3.2 Gen 1 Type-A, HDMI, VGA, Gigabit LAN, and audio interfaces. On-board interfaces include CPU/system fan pins, water cooling pump pin, USB, audio, and front panel headers.
Compact M-ATX form factor (245mm x 245mm) for versatile system builds.
The latest price of the Dahua DHI-LM22-C201 21.45" FHD 75Hz IPS Monitor in Bangladesh is 10,500৳. You can buy the Colorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard at the best price from our website or visit any of our showrooms.
The Colorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard strikes a balance between performance and space efficiency. Whether you're building a compact workstation or a multimedia PC, this motherboard provides the reliability and features you need. Backed by a 3-year manufacturing warranty, it's a solid choice for various computing needs.
Q: What CPUs are supported by the Colorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard?
A: It supports the 14th/13th/12th generation Intel Core, Pentium, and Cylon processors.
Q: What is the maximum memory supported, and what types of memory are compatible?
A: The motherboard supports up to 64GB of DDR4 memory (32GB per slot) at speeds of DDR4-3200/2933/2666/2400MHz.
