Boya BY-WM6 Wireless Microphone System

Boya BY-WM6 Wireless Microphone System

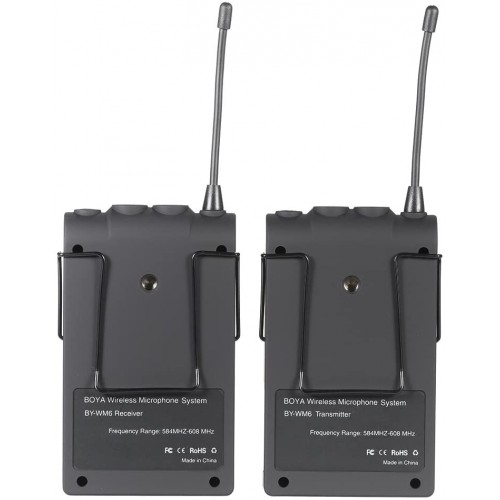

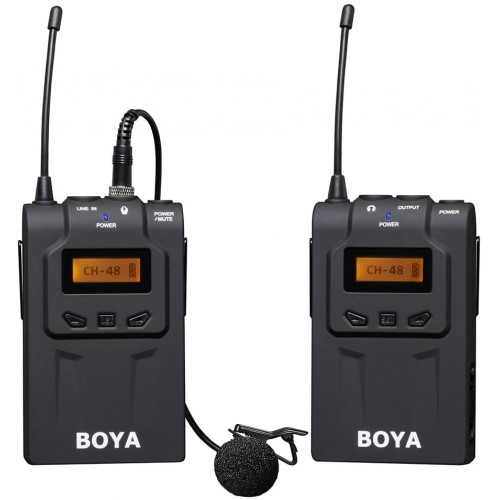

Boya BY-WM6 Wireless Microphone System comes with an UHF wireless microphone system, designed for ENG, EFP, DSLR video, and other professional applications. The receiver and the transmitter are lightweight and simple menu for easy operation. This system operates in the UHF 500 MHz bandwidth. This microphone system also comes with an UHF wireless microphone system, designed for ENG, EFP, DSLR video, and other professional applications. The receiver and the transmitter are lightweight and simple menu for easy operation. This system operates in the UHF 500 MHz bandwidth, 584 MHz-608 MHz Carrier Frequency Range, 100m (300′)(without obstacle) Operation range, 14° F to 122° F (-10℃ to +50℃) Operating temperature, 14° F to 131° F (-10℃ to +55℃) Storage temperature.

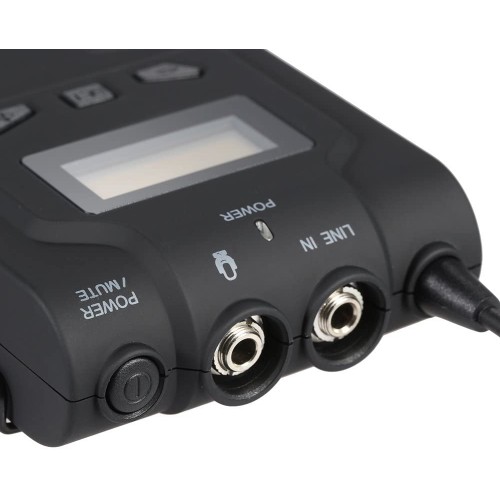

Transmitter:

In this system, it's Antenna is Flexible with 20 mW RF output power, 3.5mm mini jack Audio input connector, 250 nW or less Spurious emission, 600 mV-2000 mV Audio input level. It is also features with ±7KHz (-60 dBV, 1 KHz input) Reference deviation, 20 Hz-20 KHz Input frequency range, 8 hours Operation time and also designed with (H x W x L) 4.2" x 2.6" x 1.1" (10.6 x 6.7 x 2.9 cm) Dimensions.

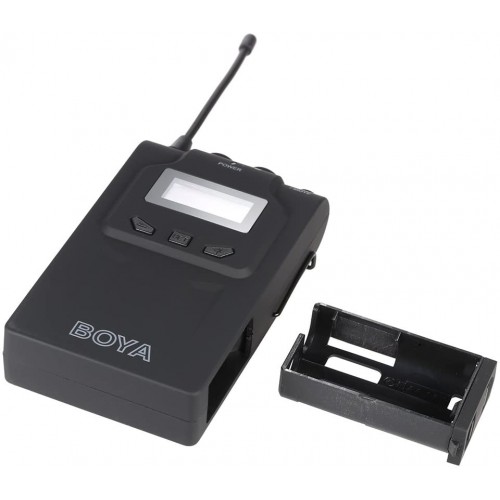

Receiver:

In this system, it's Antenna is Flexible , 3.5mm mini jack Audio input connector, 80 dB Signal-to-noise ratio, 0.8% (-60 dBV, 1 KHz input) Distortion, 60 mW, 32 Ohms/1KHz Earphone output level, 120 mV 600 mV-2000 mV Audio input level. It is also features with 8 hours Operation time and also designed with (H x W x L) 4.2" x 2.6" x 1.1" (10.6 x 6.7 x 2.9 cm) Dimensions and 98g (3.5 oz) weight without batteries.

Lavalier Microphone:

In this system, it is comes with Back electret Condenser Transducer, Omni-directional Polar pattern, 35Hz ~ 18 KHz Frequency Range, 74dB SPL Signal / Noise, -30dB +/-3dB / 0dB=1V/Pa, 1 kHz Sensitivity and also designed with 3.5mm locking mini plug and 1.2m (4') Length.
