| Motherboard | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm | |
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* - 1 x PCIe 3.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
|
| Memory Type | DDR5 | |
| Memory Slots | 4 |
|
| Supported Memory | Dual Channel DDR4 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Supports Intel Extreme Memory Profile (XMP) 2.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
|
| Maximum Memory | 192GB | |
| Graphics | Intel Xe Graphics Architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
| HDMI | 1x HDMI | |
| USB (s) | 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) 1 x USB 3.2 Gen2 Type-A (Rear) 6 x USB 3.2 Gen1 (4 Rear, 2 Front) 4 x USB 2.0 (2 Rear, 2 Front) * All USB ports support ESD Protection |
|
| LAN Port (s) | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
|
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | 1 x eDP Signal Connector 1 x Power LED and Speaker Header 2 x RGB LED Headers 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 2 x 8-pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Manufacturing Warranty | 3 years | |

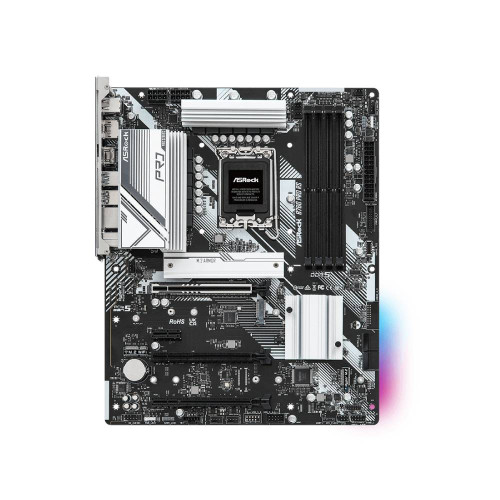

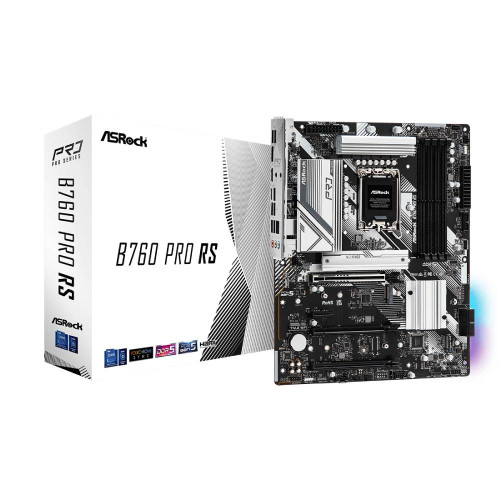

ASRock B760 Pro RS ATX Motherboard is designed for 14th, 13th, and 12th Gen Intel Core Processors, this motherboard integrates cutting-edge technologies for a seamless computing experience. From PCIe Gen5 for graphics to Dual Channel DDR5 memory, this motherboard is engineered for excellence.
Unleash the power of next-gen graphics with PCIe Gen5 support.
Benefits: Enjoy superior graphics performance for gaming, content creation, and multimedia applications.
Experience enhanced multitasking and responsiveness with DDR5 memory technology.
Benefits: Improve system efficiency and responsiveness, providing a smooth computing experience.
Ensure stability and efficiency in power delivery for VCore and GT.
Benefits: Optimal power regulation enhances system reliability, especially under heavy workloads or gaming.
Simplify installation and enhance EMI protection.
Benefits: Streamline the build process while improving electromagnetic interference protection for a more stable system.
Enjoy high-speed network connections for seamless online experiences.
Benefits: Fast and reliable network connectivity for smooth online gaming, streaming, and file transfers.
Streamline driver updates with the convenient auto-installer.
Benefits: Effortlessly keep system drivers up-to-date, ensuring compatibility and optimal performance.
Quickly diagnose and troubleshoot system issues.
Benefits: Simplify system diagnostics, saving time and facilitating troubleshooting for a more efficient user experience.
Effortlessly update drivers for optimal system performance.
Benefits: Keep all drivers current with minimal effort, ensuring peak system performance and stability.
Harness the latest processor technologies for enhanced computing power.
Benefits: Stay at the forefront of CPU technology, unlocking increased performance and efficiency.
Maximize CPU performance for demanding applications.
Benefits: Optimize CPU performance for resource-intensive tasks, delivering a responsive computing experience.
Elevate system responsiveness and data transfer speeds.
Benefits: Enhance multitasking capabilities and overall system performance with faster DDR5 memory.
Easily overclock memory for peak performance.
Benefits: Fine-tune memory settings for increased performance, ideal for enthusiasts and gamers seeking maximum speed.
The latest price of the ASRock B760 Pro RS ATX Motherboard in Bangladesh is 23,000৳. You can buy the ASRock B760 Pro RS ATX Motherboard at the best price from our website or visit any of our showrooms.
The ASRock B760 Pro RS ATX Motherboard combines cutting-edge technology with rock-solid durability, offering a superior computing experience. Elevate your productivity, enjoy ultrafast connectivity, and benefit from the latest Intel technologies. Trust in the reliability and performance of ASRock for your computing needs.
Q: What processors does the ASRock B760 Pro RS support?
A: The motherboard supports 14th, 13th, and 12th Gen Intel Core Processors (LGA1700).
Q: What is the maximum capacity of DDR5 memory supported?
A: The motherboard supports up to 192GB of DDR5 non-ECC, un-buffered memory.
Q: What is the form factor of the ASRock B760 Pro RS motherboard?
A: The motherboard follows the ATX form factor, measuring 12.0-in x 9.6-in (30.5 cm x 24.4 cm).
